External louvres

layer

WG

External weather louvres to protect ventilation and air conditioning systems against the direct ingress of rain, leaves and birds into fresh air and exhaust air openings. In combination with insect screens, they also provide protection against insects. They are used for a wide variety of applications with regard to air flow and can also cover large installation openings. For single grilles, the following applies:

  • Maximum width of 2400 mm, maximum height of 2310 mm, maximum area of 4 m² (aluminium variant also as continuous horizontal runs)
  • Low differential pressure due to aerofoil blades
  • Low air-regenerated noise due to a rounded drip edge
  • Simple and quick installation due to perimeter border
  • Variants made of galvanised sheet steel, aluminium or stainless steel
  • Large-area arrangement of several single grilles in combination with support structure provided by others possible to cover very large installation openings


Optional equipment and accessories

  • Installation subframe
  • Can be combined with multileaf or non-return dampers
  • Insect screen
  • Powder-coated or with anodised finish


read more

layer

NL

Acoustic louvres as a protection of air conditioning systems against the direct ingress of rain, leaves and birds into fresh air and exhaust air openings

  • Maximum width of 1800 mm, maximum height of 2250 mm
  • Low differential pressure due to aerofoil blades
  • Low air-regenerated noise
  • All aerodynamic data is measured in aerodynamics and acoustics laboratories
  • Absorption material faced with glass fibre fabric and retained by perforated sheet metal
  • Double bank of louvre blades for demanding acoustic requirements
  • Non-active section, without acoustic function, for a uniform appearance
  • Multi-section constructions for large dimensions


Optional equipment and accessories

  • Powder-coated

read more

layer

WG-JZ

Combinations of external weather louvres and multileaf dampers as a protection against the direct ingress of rain, leaves and birds, and for shut-off and control

  • Maximum width of 2000 mm, maximum height of 1995 mm
  • Low differential pressure due to aerofoil blades
  • Low air-regenerated noise
  • All aerodynamic data is measured in aerodynamics and acoustics laboratories
  • Aerofoil parallel or opposed hollow blades
  • Casing air leakage to EN 1751, class C
  • Available in standard sizes and many intermediate sizes
  • Pre-assembled combination, hence fast and easy to install


Optional equipment and accessories

  • Installation subframe
  • Insect screen
  • Powder-coated or anodised surface
  • Actuators: Open/Close actuators, modulating actuators

read more

layer

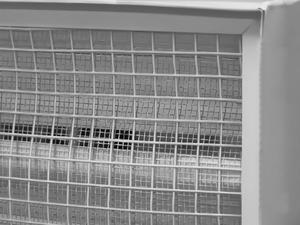

AWG

TROX Weather louvers provide good protection against direct ingress of rain water, leaves and birds, provided that the selection and installation of weather louvers comply with TROX recommendations. It should noted however, small amount of rain water penetration can still be expected under extreme conditions.

read more
