VAV terminal units

Product Finder

TVB

Trox VARYCONTROL terminal boxes type TVB is suitable for volume flow control of supply air in VAV systems. These are terminal boxes with circular inlet spigot and a larger, rectangular outlet section.

Terminal boxes are used in VAV systems with a high level of technical and acoustic requirements. Different versions allow appropriate selection of terminals to meet project-specific control requirements. The heating requirements in the outer zones of an air-conditioned building can be covered with an electric heater. The air diffusers can be connected directly to a multiple outlet box to save branch ducting and installation costs

TVR

Circular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

Suitable for the control of volume flow rate, room pressure or duct pressure
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
High control accuracy even with upstream bend (R = 1D)
Suitable for airflow velocities up to 13 m/s
Closed blade air leakage to EN 1751, up to class 2 (4-10), Class 3 (12,14, 16)

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type CA for the reduction of air-regenerated noise

TFP

TFP Series Fan VAV Terminal Boxes take primary and induced air and mix the two thoroughly to provide a constant air supply to the occupied zone of the building.

Total flow from the diffuser is kept substantially constant thus giving very good air distribution even with high turn down of the primary air volume. TFP has been designed and developed to achieve lower room noise levels

TZ-Silenzio

Rectangular VAV terminal units for the supply air control in buildings with variable air volume systems, demanding acoustic requirements and low airflow velocities

Highly effective integral attenuator
Optimised for airflow velocities of 0.7 – approx. 7 m/s
High control accuracy, even in case of unfavourable upstream conditions
Compact construction with rectangular connections on both ends
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
Closed blade air leakage to EN 1751, Class 4
Casing leakage to EN 1751, Class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TS for the reduction of air-regenerated noise
Hot water heat exchanger of Type WT for reheating the airflow

TVL

Rectangular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

■ Suitable for the control of volume flow rate, room pressure or duct pressure

■ Electronic control components for different applications (Easy, Compact, Universal)

■ High control accuracy

■ For volume flow rate ranges up to 36,360 m3/h or 10,000 l/s

■ Suitable for airflow velocities up to 10 m/s

■ Operation pressure 50 to 1000 Pa

Optional equipment and accessories

■ Secondary silencer Type TX for the reduction of air-regenerated noise

■ Hot water heat exchanger of Type WT for reheating the airflow

TVRK

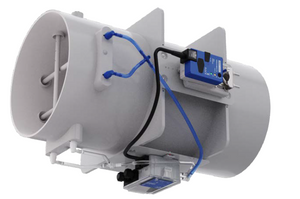

Plastic circular VAV terminal units for aggressive extract air in variable air volume systems

Casing and damper blade made of flame-resistant polypropylene
Slide-out effective pressuresensor allows for easy cleaning
Suitable for the control of volume flow rate, room pressure or duct pressure
Electronic control components for different applications (Universal and LABCONTROL)
Suitable for airflow velocities up to 13 m/s
Closed blade air leakage to EN 1751, class 3
Casing air leakage to EN 1751, class B

Optional equipment and accessories

With flanges on both ends
Matching flanges for both ends
Plastic secondary silencer Type CAK for the reduction of air-regenerated noise

TVR-Ex

Circular VAV terminal units for variable air volume systems, approved and certified for potentially explosive atmospheres (ATEX)

ATEX-compliant construction and parts
Approved for all gases, mists and vapours in zones 1 and 2, with electronic control additionally for dusts in zones 21 and 22
Suitable for the control of supply or extract air as well as for differential pressure control
Electronic or pneumatic control components
Closed blade air leakage to EN 1751, up to class 4
Casing air leakage to EN 1751, class C

Optional equipment and accessories

Spring return actuator
Auxiliary switch with adjustable switching points for capturing the end positions

TVZ

VAV terminal units for the supply air control in buildings with variable air volume systems and demanding acoustic requirements

Highly effective integral attenuator
Box style construction for the reduction of the airflow velocity
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
Closed blade air leakage to EN 1751, up to class 4
Casing air leakage to EN 1751, up to class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TS for the reduction of air-regenerated noise
Hot water heat exchanger of Type WT for reheating the airflow

TVA

VAV terminal units for extract air control in buildings with variable air volume systems and demanding acoustic requirements

Highly effective integral attenuator
Box style construction for the reduction of the airflow velocity
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
Closed blade air leakage to EN 1751, up to class 4
Casing air leakage to EN 1751, up to class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TS for the reduction of air-regenerated noise

TA-Silenzio

Rectangular VAV terminal units for the extract air control in buildings with variable air volume systems, demanding acoustic requirements and low airflow velocities

Highly effective integral attenuator
Optimised for airflow velocities of 0.7 – 7 m/s
High control accuracy, even in case of unfavourable upstream conditions
Compact construction with rectangular connections on both ends
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
Closed blade air leakage to EN 1751, up to class 4
Casing leakage to EN 1751, class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TS for the reduction of air-regenerated noise

TVT

Rectangular air terminal units for standard applications in supply air or extract air systems with variable volume flow rates, suitable for low-leakage shut-off

For volume flow rate ranges up to 28836 m³/h or 8010 l/s
Suitable for the control of volume flow rate, room pressure or duct pressure
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
High control accuracy
Closed blade air leakage to EN 1751, class 3
Casing air leakage to EN 1751, up to class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TX for the reduction of air-regenerated noise
Hot water heat exchanger of Type WT for reheating the airflow

TVM

VAV dual duct terminal units for dual duct systems with variable volume flows in buildings with demanding acoustic requirements

Individual temperature control for each room or zone
Highly effective integral attenuator
Electronic control components for various applications
Closed blade air leakage to EN 1751, up to class 4
Casing leakage to EN 1751, Class B

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TS for the reduction of air-regenerated noise

TVJ

Rectangular air terminal units for standard applications in supply air or extract air systems with variable volume flow rates

Suitable for volume flow rate ranges up to approx. 62,000 m³/h or 17,000 l/s
Suitable for the control of volume flow rate, room pressure or duct pressure
Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
High control accuracy
Closed blade air leakage to EN 1751, Class 1 (B + H ≥ 600 mm)
Casing air leakage to EN 1751, class B

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TX for the reduction of air-regenerated noise
Hot water heat exchanger Type WT for reheating the airflow
